Why Do Train Tracks Have Stones Under Them?

Those angular rocks are doing four different structural jobs simultaneously — and without them, the tracks would shift and sink within weeks.

Quick answer

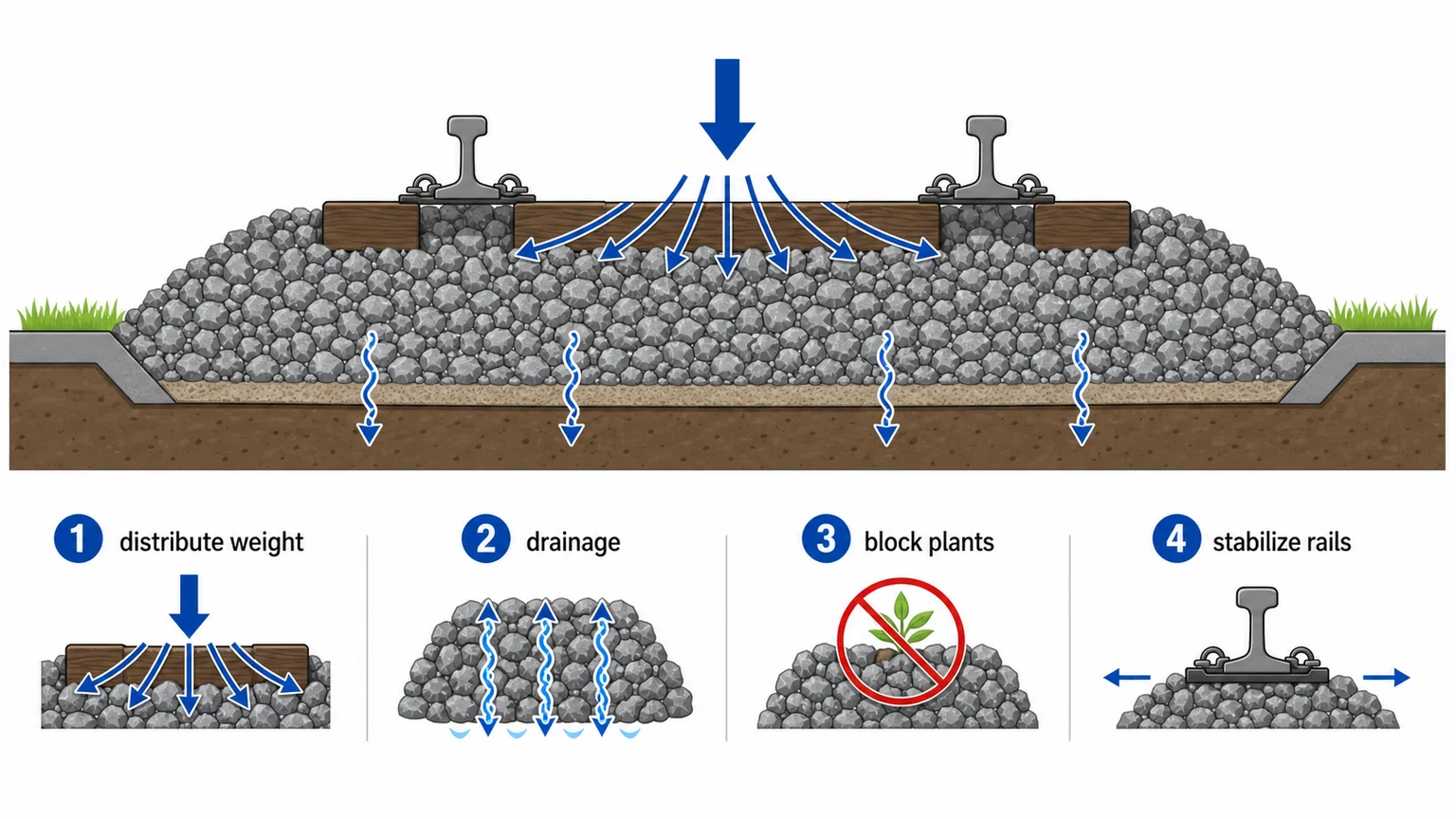

The stones under train tracks are called ballast. They are not just decorative fill — they are a precisely engineered structural layer. Ballast does four things. It distributes the enormous weight of passing trains across a wide area of ground rather than concentrating it on two narrow rails. It drains rainwater away from the track bed, preventing waterlogging that would cause the ground to shift. It locks the wooden or concrete sleepers (the crosspieces holding the rails) in place, resisting the lateral forces that try to push tracks sideways. And it absorbs vibration, reducing noise and wear. The stones are deliberately angular and sharp-edged, not rounded. Angular stones interlock with each other, while smooth rounded ones would shift and slide.

Railway track with angular ballast stones visible between and under the sleepers

The stones are called ballast

Railway ballast is specifically crushed angular stone — usually granite or limestone — chosen for its interlocking properties.

Angular shape is essential

Sharp-edged stones lock together under load. Smooth, rounded stones slide and cannot stabilise the track.

It distributes enormous loads

A loaded freight train can weigh over 10,000 tonnes. The ballast spreads that weight across a wide area of subgrade.

Myth: the stones are just cheap filler

Ballast specification is highly engineered. Stone type, size, shape, and depth are all calculated for the traffic load and conditions.

Angular Stones Lock Together — Smooth Ones Do Not

The specific shape of ballast stones is not accidental. Railway ballast is crushed, not dug from riverbeds. Crushing produces angular, irregular faces that interlock when compacted, creating a stable matrix that resists movement under repeated loading.

River gravel, by contrast, is smooth and rounded from water abrasion. Under the repeated hammer of train loads, smooth stones roll and migrate rather than locking together. Track geometry deteriorates quickly.

This is why ballast must be periodically 'tamped' — a machine lifts the sleepers and packs fresh stone underneath — and eventually replaced when the angular edges wear smooth from traffic.

Myth vs Reality

Myth

The stones are cheap filler because proper concrete foundations would cost too much

A bed of stones seems like a low-budget solution compared to a concrete base.

Reality

Ballast outperforms concrete for railway-specific loads and maintenance needs

Ballast is self-draining, easily adjusted, and can be tamped back into position. A rigid concrete base concentrates loads differently and is expensive to repair when track geometry shifts. Many high-speed railways do use concrete slab track, but traditional ballast remains preferable for freight and conventional rail.

Ballast Track vs Concrete Slab Track

Drainage: Ballast: natural drainage between stones. Slab: requires engineered drainage channels.
Maintenance: Ballast: tamped and replaced periodically. Slab: very low maintenance but expensive to repair if damaged.
Vibration absorption: Ballast: good natural damping. Slab: requires additional rubber pads and dampers.
Best for: Ballast: freight, conventional rail, older infrastructure. Slab: high-speed rail in tunnels and on bridges.

Note

Track maintenance is mostly about the ballast

Railway track geometry degrades mainly because ballast settles and stones migrate. Tamping machines lift sleepers and redistribute the ballast underneath, restoring the correct geometry. Tracks on well-maintained ballast are safer than those where the stone layer has become compacted and contaminated.

Quick answers

Common questions

What are the stones under train tracks called?

They are called ballast — typically crushed granite or limestone chosen specifically for its angular, interlocking shape.

Why are the stones angular and not smooth?

Angular stones interlock under load and resist movement. Smooth, rounded stones slide and cannot stabilise the track.

Do all train tracks have stones?

No. Many high-speed rail lines and tunnels use concrete slab track, which offers different maintenance properties. Traditional ballast remains common for freight and conventional rail.

Why does ballast need to be replaced over time?

Repeated train loads and weather gradually break down the angular edges. As stones become smoother and more contaminated, they lose their interlocking ability and drainage capacity.
