That weird mark you've been ignoring

What Are the Black Diamonds on a Tape Measure For?

Those black diamonds are not random decoration on the tape. They mark 19.2-inch spacing, a shortcut builders use with standard eight-foot sheets.

Quick answer

Those black diamonds are spacing shortcuts for builders. They appear every 19.2 inches because 96 inches — one 8-foot sheet — divided by 5 equals exactly 19.2. That lets framers lay out five evenly spaced floor joists or roof trusses across a standard sheet without pulling out a calculator. If you're measuring furniture or shelves, you don't need them at all.

For everyday home measuring, skip them. The normal inch and foot numbers are all you need.

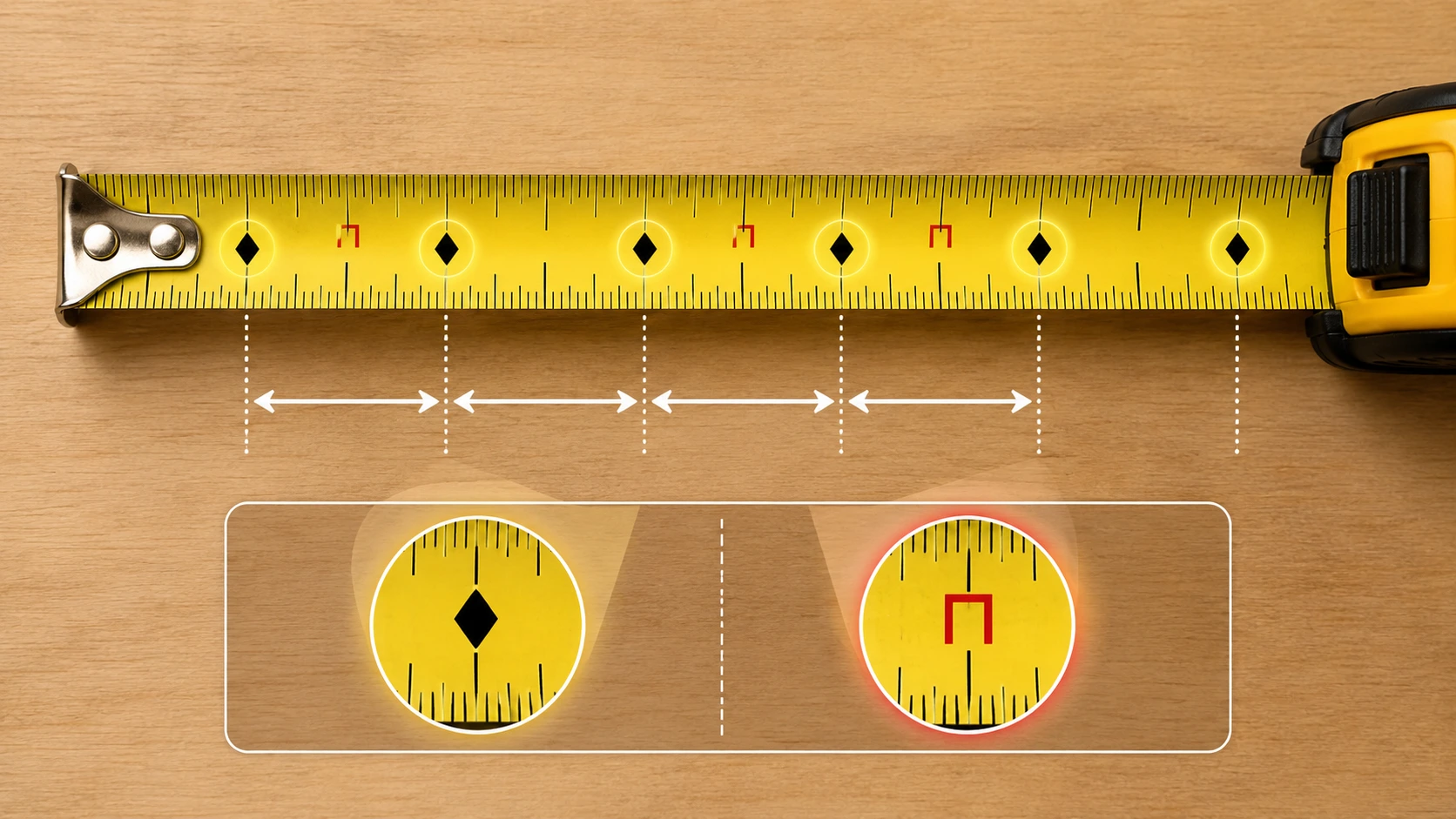

Close-up of a tape measure with the black diamond marks highlighted

What they are

Layout marks

Spacing

Every 19.2 inches

Used for

Joist and truss layout

Need them at home?

Almost never

They're a math shortcut printed on the tape

The black diamonds are pre-calculated layout markers. A framer putting down floor joists across an 8-foot floor panel needs five evenly spaced positions. Instead of dividing 96 by 5 every time, they just follow the diamonds.

The number 19.2 looks weird until you do the math: 96 divided by 5 is 19.2. That's it. The tape does the division for you.

Most people who own a tape measure never frame floors or roofs, so they never use the diamonds. That's fine. They don't get in the way of normal measuring.

The different marks on a tape measure

A tape measure has several sets of marks. Each one is for a different job.

Black diamonds (19.2 in)
Layout marks for spacing engineered joists or trusses across an 8-foot span. Used by framers and builders.
Red marks (16 in)
Standard stud spacing marks. Used for framing walls. More common in DIY and renovation work.
Normal inch and foot numbers
Used for everything else: furniture, shelves, cutting lengths, hanging pictures, measuring rooms.

Myth vs Reality

Myth

The black diamonds are random branding or decoration.

They look like design elements if you've never done structural framing work.

Reality

They're a printed math shortcut.

They exist to save framers time on a specific calculation that comes up constantly in construction layout. Completely purposeful, just not useful outside that context.

Note

You don't need them for normal measuring

If you're measuring furniture, room dimensions, cutting wood for shelves, or hanging curtains — use the normal inch and foot marks. The black diamonds only matter if you're laying out floor joists or roof trusses on a building site.

Quick answers

Common questions

What are the black diamonds on a tape measure?

They are construction layout marks, usually spaced every 19.2 inches. They help framers place five evenly spaced joists or trusses across a standard 8-foot span without calculating.

Why are the black diamonds at 19.2 inches?

Because 8 feet is 96 inches, and 96 divided by 5 is 19.2. The diamonds mark five equal divisions across a standard 8-foot building panel.

Are the black diamonds the same as the red marks?

No. Red marks usually indicate 16-inch stud spacing for wall framing. Black diamonds mark 19.2-inch spacing for floor joists or roof trusses.

Do I ever need the black diamonds for home projects?

Almost never. They're for structural framing layout. For normal measuring, cutting, and home improvement tasks, the standard inch and foot marks are all you need.

Do all tape measures have black diamonds?

Many do, but not all. Some tapes are made for general use and only include standard inch markings. Professional framing tapes are more likely to include them.

Who actually uses the black diamonds?

Framers, carpenters, and construction workers who lay out floor systems, roof trusses, or any structure that uses engineered lumber spaced at 19.2-inch intervals.
